Blue Sea Systems 5045 ST Blade Fuse Block Compact 4 Circuit with Cover

$5.49
$22.18
374 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

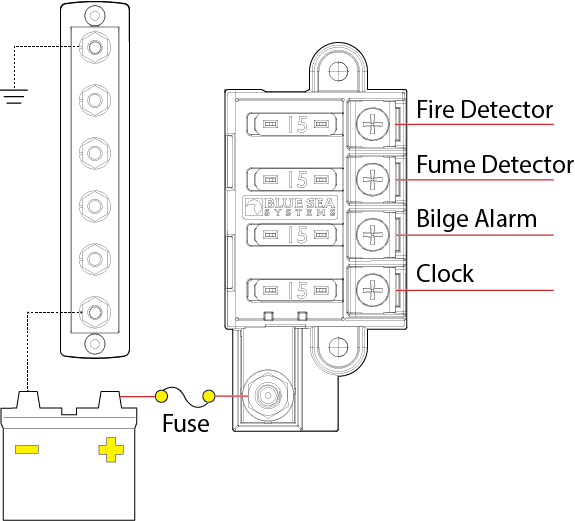

    Blue Sea Systems Fuse Block ST Blade Compact 4 Circuit with Cover, part number 5045, is a common source fuse block that provides surface mount circuit protection for ATO®/ATC® fuses in a compact footprint Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 Screw (M4), Recommended stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer, terminal stud size: #10-32 Single side design allows wire entry from one side to maximize space Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Clear insulating cover meets ABYC/USCG insulation requirements. Includes 4 write-on circuit labels. Fuses sold separately
